Affordable Swiss-Type CNC Lathe for Small Precision Parts Manufacturing
A practical CNC solution for factories upgrading from manual operation, cam machines or low-efficiency machining processes.
5 current platforms0.01 mm accuracyApplication review before recommendation

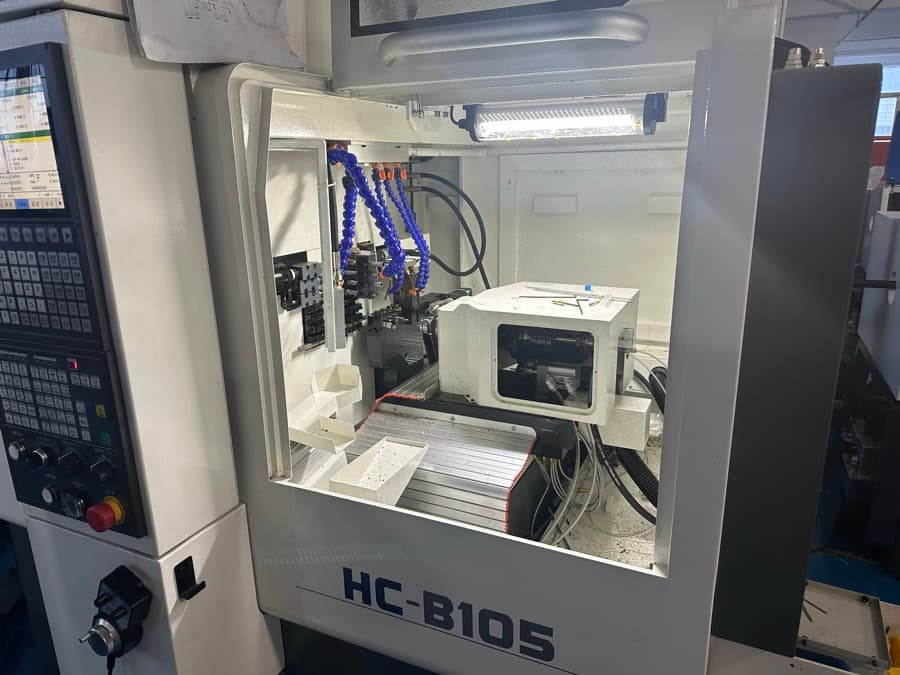

HC-B105Real machine interior · factory photo
Real machining footage
See the cutting process inside the machine
These are real workshop videos supplied by the factory. They show the tool area, coolant delivery and live cutting conditions rather than a rendered demonstration.
- Actual cutting under coolant
- Close view of the tool arrangement
- Different machining angles from the factory floor
Production pain points
Common problems in small precision parts manufacturing
Cam machines rely heavily on experienced technicians
Part changes can require slow mechanical adjustment
Conventional CNC lathes may be less efficient for small long parts
Stable feeding and 0.01 mm accuracy require the right setup
Small factories need a practical path to automation
A practical production path
Swiss-Type CNC lathe solutions for small-diameter parts
Depending on the confirmed machine configuration, the production flow can support feeding, turning, cutoff and back-working for small precision parts.

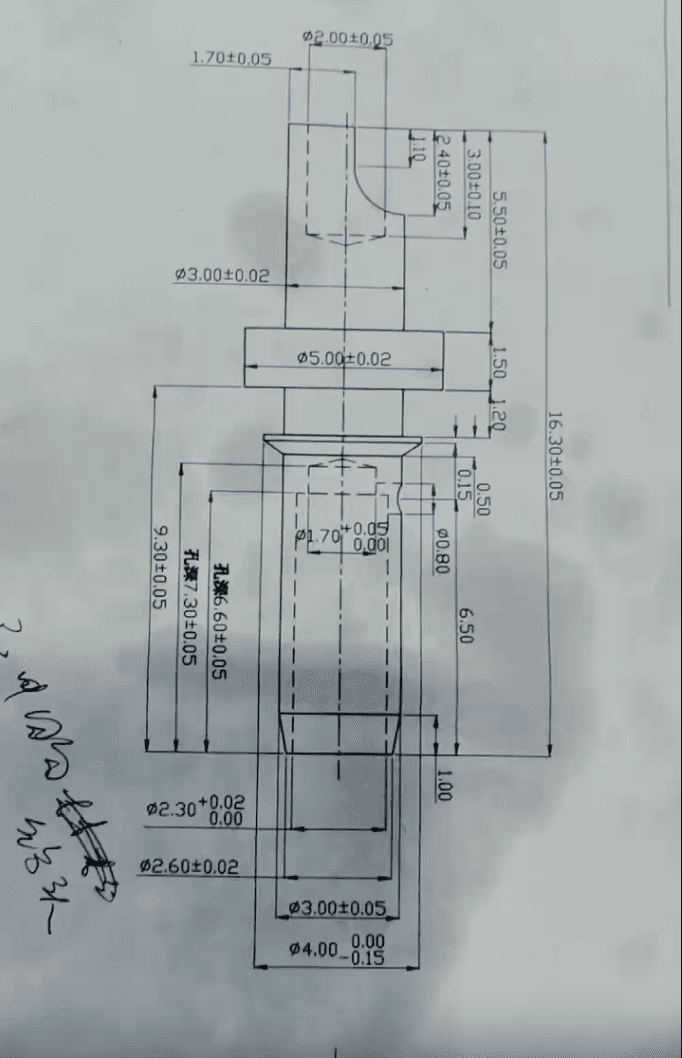

The right platform depends on the actual part drawing, material, tolerance, secondary operations and production quantity. It should not be treated as a universal replacement for every cam machine.
Send your part details →Machine architecture and process capability
Five platforms with clearly different production roles
HC-B075 and HC-B105 are five-axis dual-spindle platforms. HC-06Y, HC-06BAO and HC-06D are three-axis compact platforms. The details below follow the supplied XinTieCheng catalogue; final tooling and capability depend on confirmed configuration.
5-axisDual-spindle platform

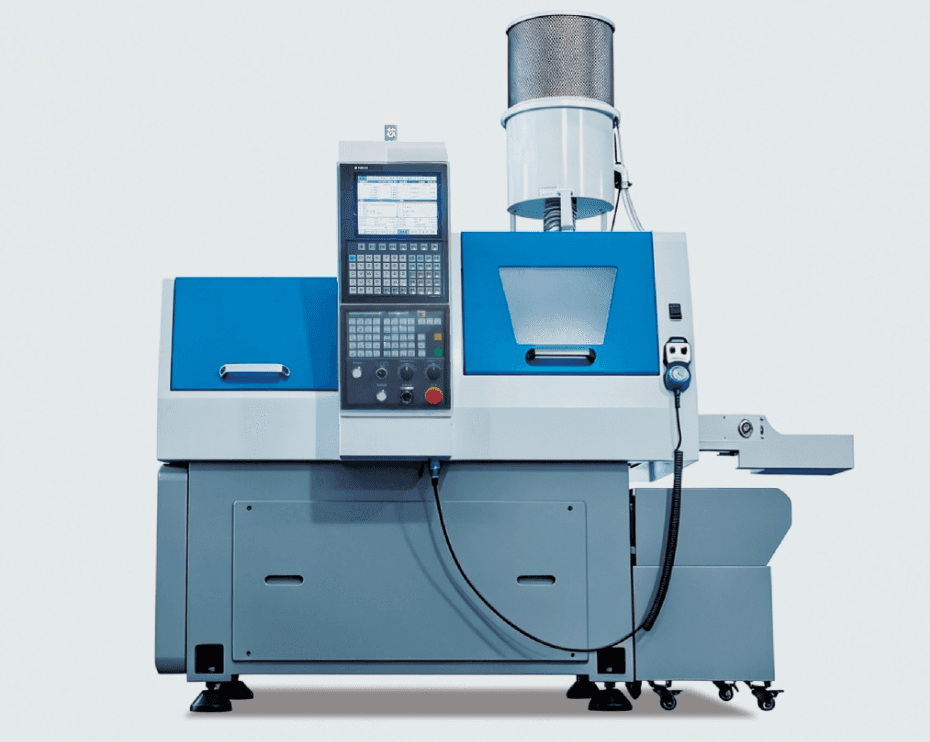

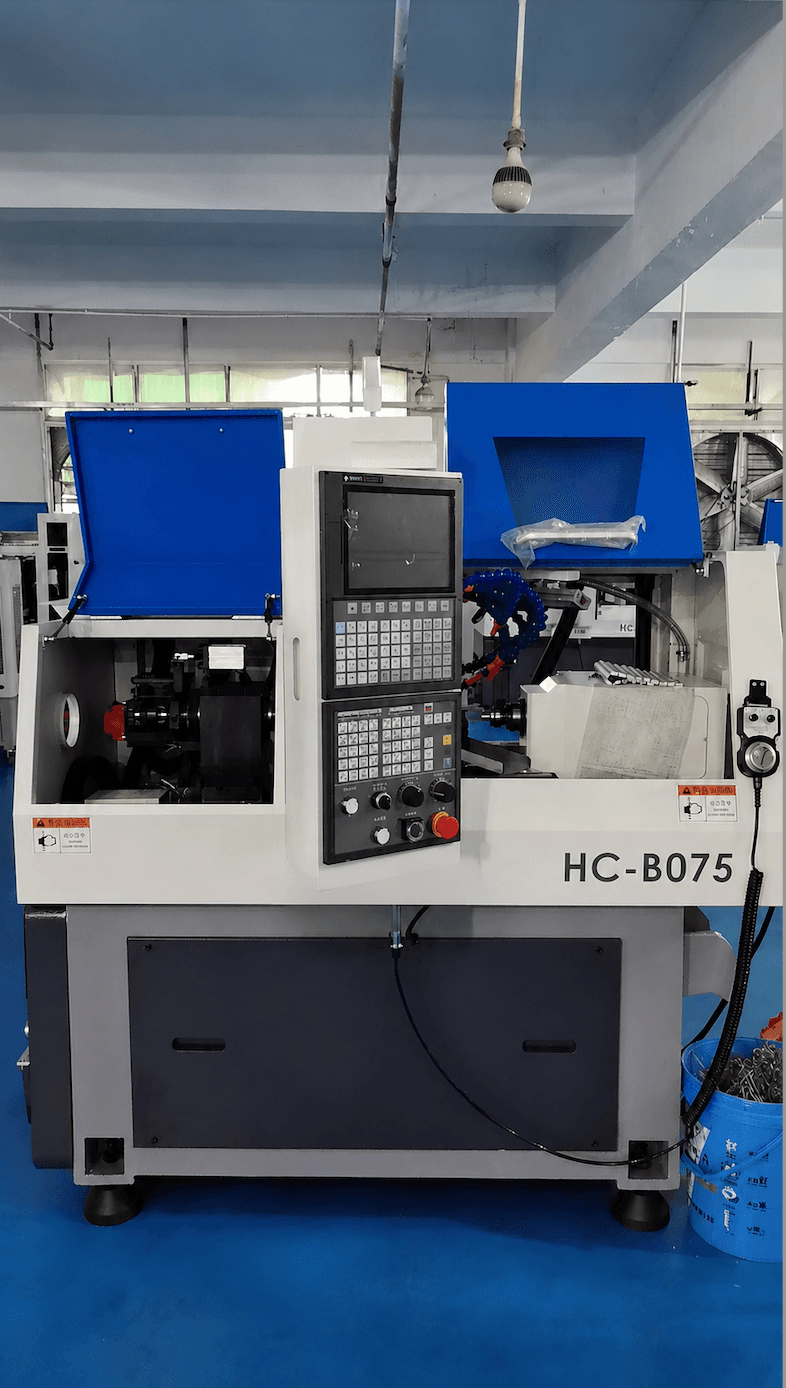

Ø 7 mmHC-B075
Five-axis main-and-back-spindle platform for small precision turned parts, pins and shaft-type components.
- Axis configuration
- 5-axis
- Spindle speed
- 50-8,000 r/min
- Spindle power
- 1,300 W main / back spindle
- Tool arrangement
- 19 tool positions; multiple power heads
- Accuracy
- 0.01 mm
- Main and back spindle coordinated machining
- Turning, milling, drilling and tapping
- Boring, rolling and eccentric machining
- Guide-bushing and non-guide-bushing configurations
5-axisDual-spindle platform

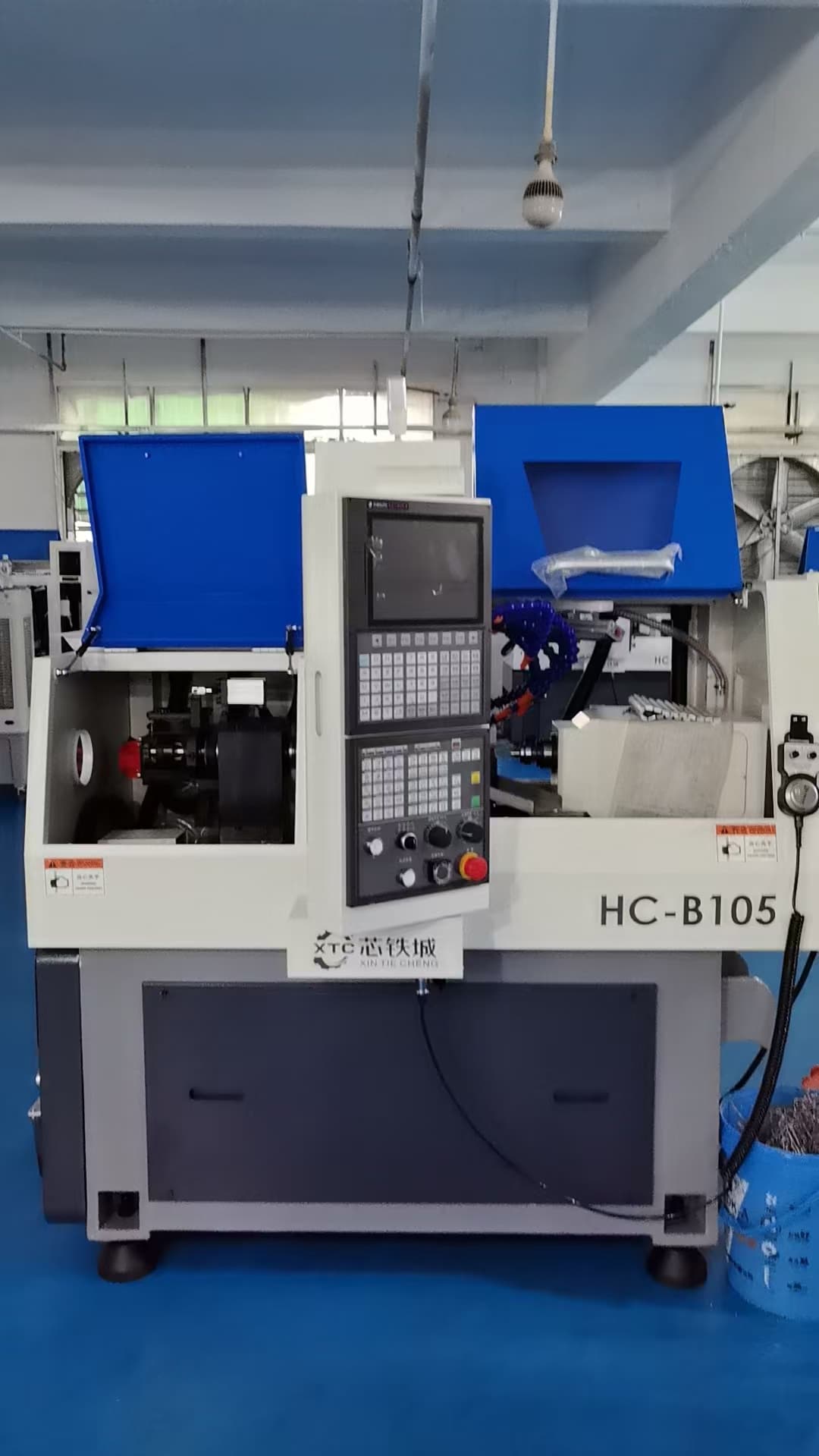

Ø 10 mmHC-B105
Five-axis main-and-back-spindle platform with extended diameter capacity for precision turned and connector-type parts.
- Axis configuration
- 5-axis
- Spindle speed
- 50-8,000 r/min
- Spindle power
- 1,900 W main / back spindle
- Tool arrangement
- 19 tool positions; multiple power heads
- Accuracy
- 0.01 mm
- Main and back spindle coordinated machining
- Turning, milling, drilling and tapping
- Boring, rolling and eccentric machining
- Parallel main-and-back-spindle cutting
3-axisY-axis compact platform

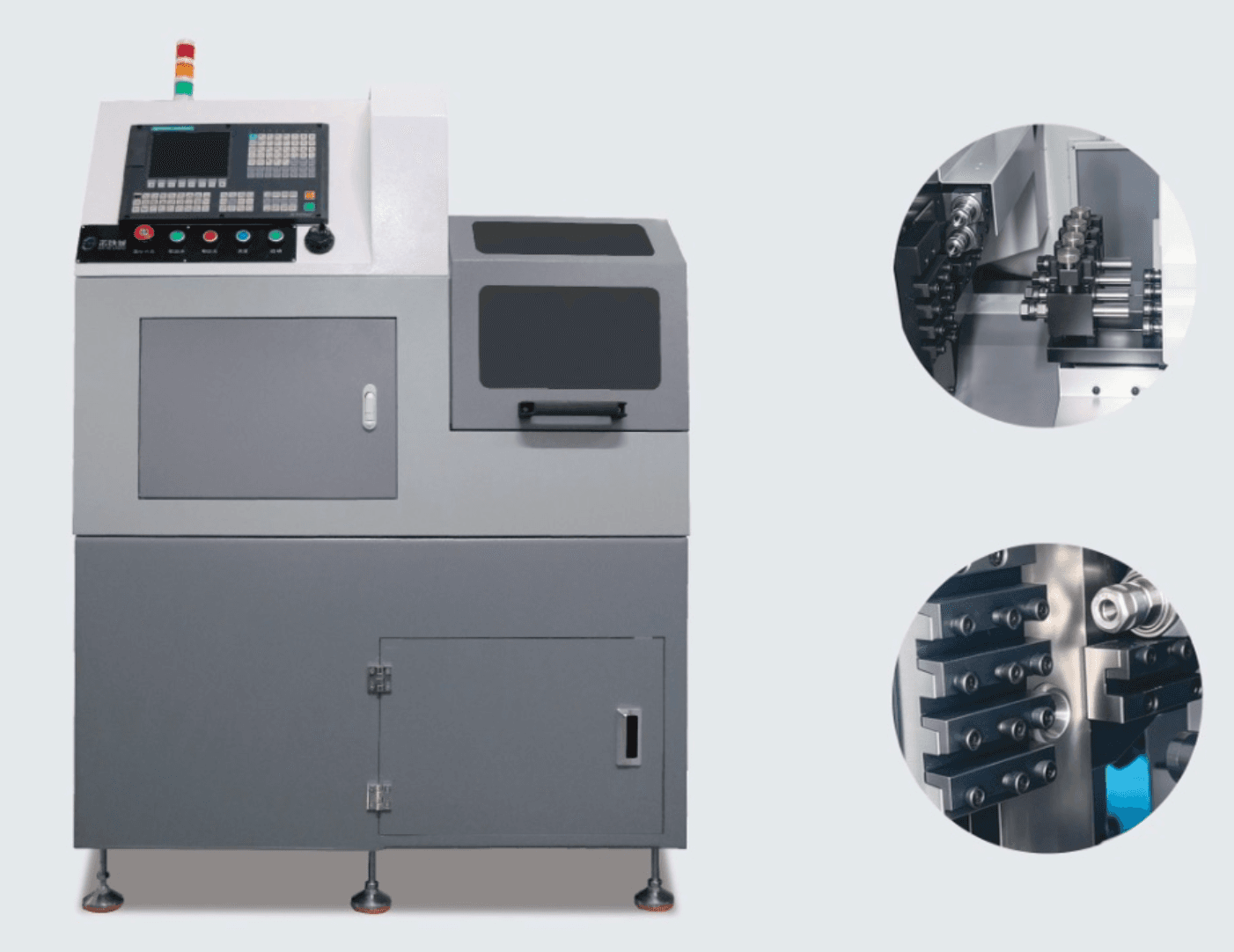

Ø 6 mmHC-06Y
Three-axis Y-axis platform with the broadest standard powered-tool arrangement in the HC-06 series.
- Axis configuration
- 3-axis
- Spindle speed
- 50-8,000 r/min
- Spindle power
- 1,000 W
- Tool arrangement
- Double-row knife; 5 turning tools; 4 front drilling tools; 2 powered tools
- Standard / optional
- Two powered tools are standard; automatic feeder can be equipped
- Accuracy
- 0.01 mm
- X / Y / Z axis travel
- Turning, drilling and tapping
- Flat and slot milling
- Catalogue powered-tool speed: 6,000 r/min (optional 12,000 r/min)

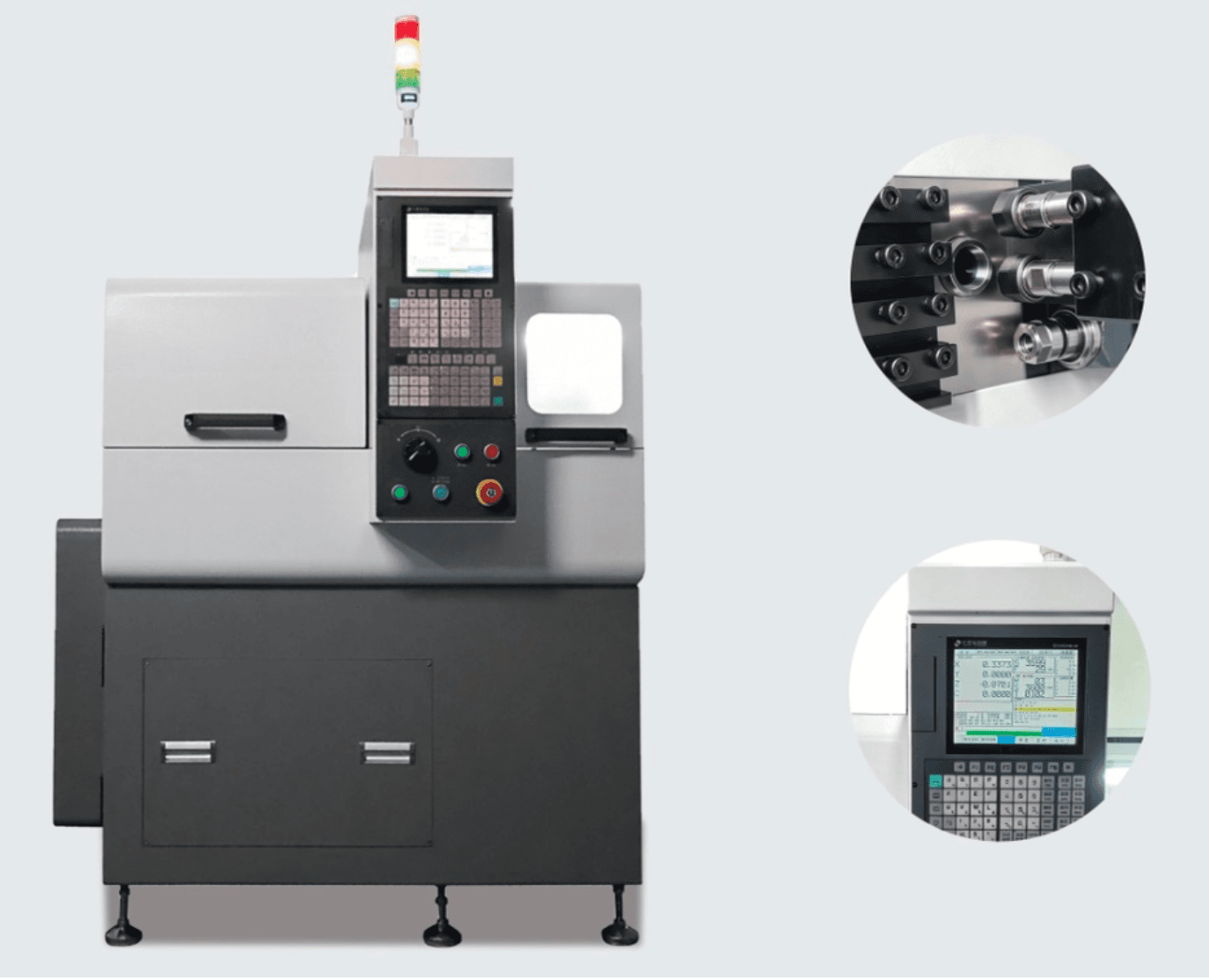

3-axisCompact compound platform
Ø 6 mmHC-06BAO
Three-axis compound-machining platform with a standard C-axis and powered tool for indexing work.
- Axis configuration
- 3-axis
- Spindle speed
- 50-8,000 r/min
- Spindle power
- 750 W
- Tool arrangement
- 7-position row knife; 4 turning tools; 2 front drilling tools; 1 powered tool
- Standard / optional
- C-axis and one 0.19 kW powered tool are standard
- Accuracy
- 0.01 mm
- X / Y / Z axis travel
- Indexing turning
- Drilling and milling
- Powered-tool speed: 12,000 r/min
3-axisPractical compact platform

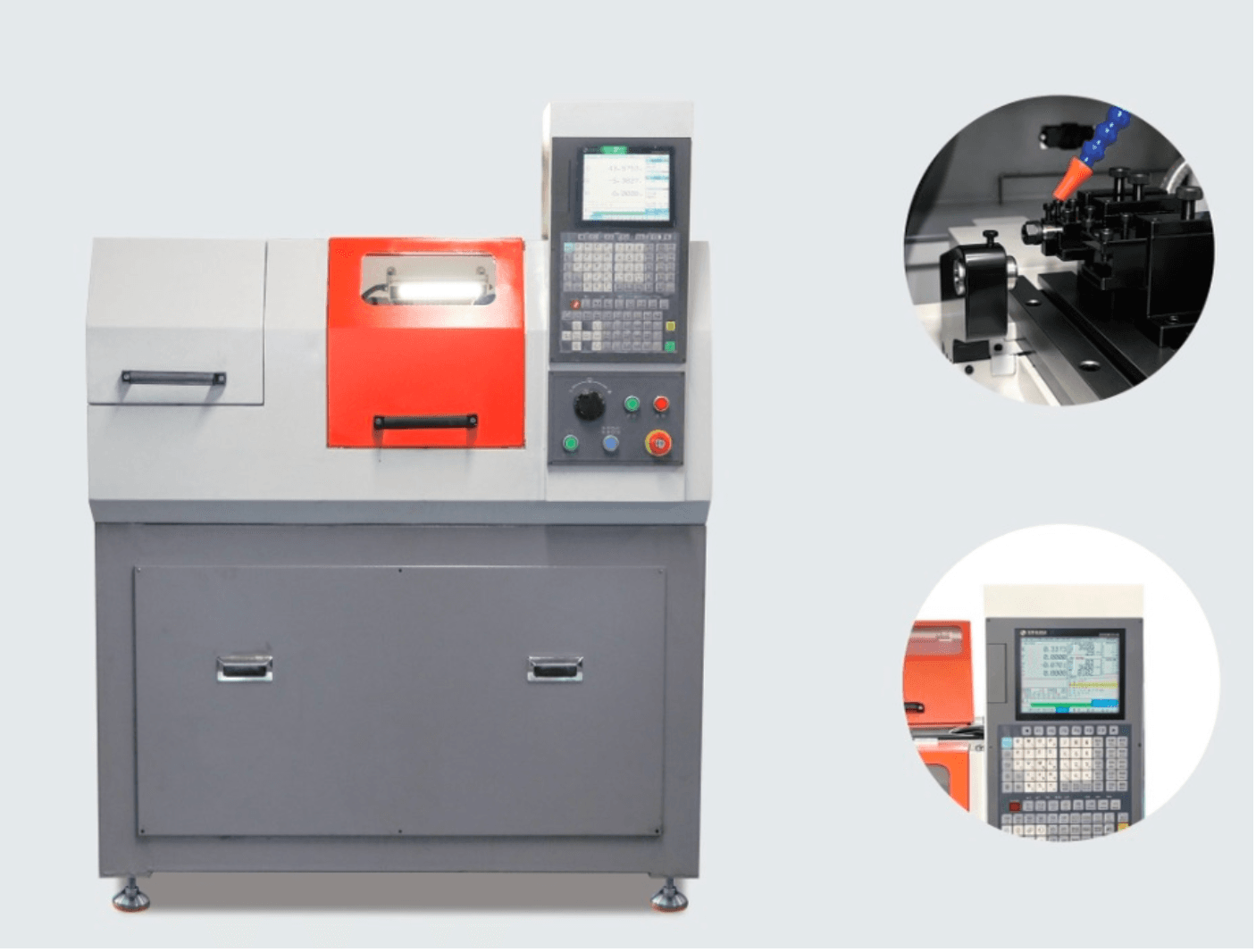

Ø 6 mmHC-06D
Cost-focused three-axis row-tool platform for turning and drilling small parts in a compact footprint.
- Axis configuration
- 3-axis
- Spindle speed
- 300-8,000 r/min
- Spindle power
- 750 W
- Tool arrangement
- 9-position row knife; 5 turning tools; 3 front drilling tools
- Standard / optional
- Powered head is optional; it is not listed as standard equipment
- Accuracy
- 0.01 mm
- X / Z travel listed in the technical table
- Turning and drilling
- Optional 0.19 kW powered head
- Automatic feeder can be equipped
Catalogue-based comparison
Choose architecture before choosing a model
Tool count alone does not indicate model level. HC-06BAO includes a C-axis and powered tool for compound machining; HC-06D uses a simpler row-tool layout and lists the powered head as optional. Selection must follow the required process.
| Model | Axes | Max diameter | Turning length | Spindle | Catalogue configuration |
|---|---|---|---|---|---|
| HC-B075 | 5-axis | 7 mm | 120 mm | 50-8,000 r/min | 19 tool positions; multiple power heads |
| HC-B105 | 5-axis | 10 mm | 120 mm | 50-8,000 r/min | 19 tool positions; multiple power heads |
| HC-06Y | 3-axis | 6 mm | 120 mm | 50-8,000 r/min | Two powered tools are standard; automatic feeder can be equipped |
| HC-06BAO | 3-axis | 6 mm | 120 mm | 50-8,000 r/min | C-axis and one 0.19 kW powered tool are standard |
| HC-06D | 3-axis | 6 mm | 120 mm | 300-8,000 r/min | Powered head is optional; it is not listed as standard equipment |
Haichuang manufacturing evidence
Built, assembled, reviewed and tested in a real production environment
The equipment story is supported by factory-floor evidence: machine production, mechanical assembly, electrical integration, part inspection and on-site application review.

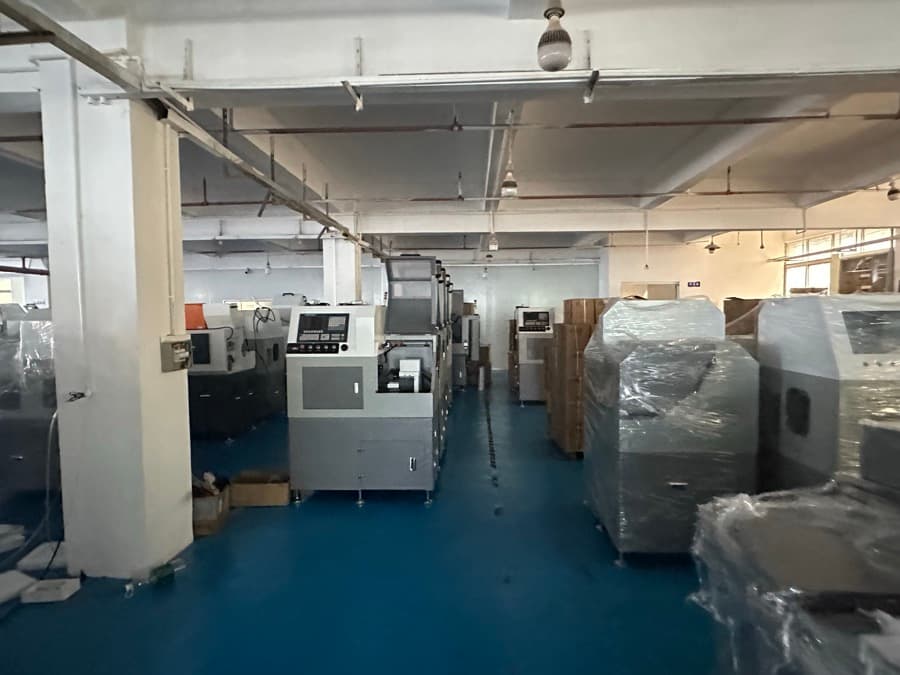

Machine production area
Real equipment on the Haichuang production floor, not a rendered showroom.

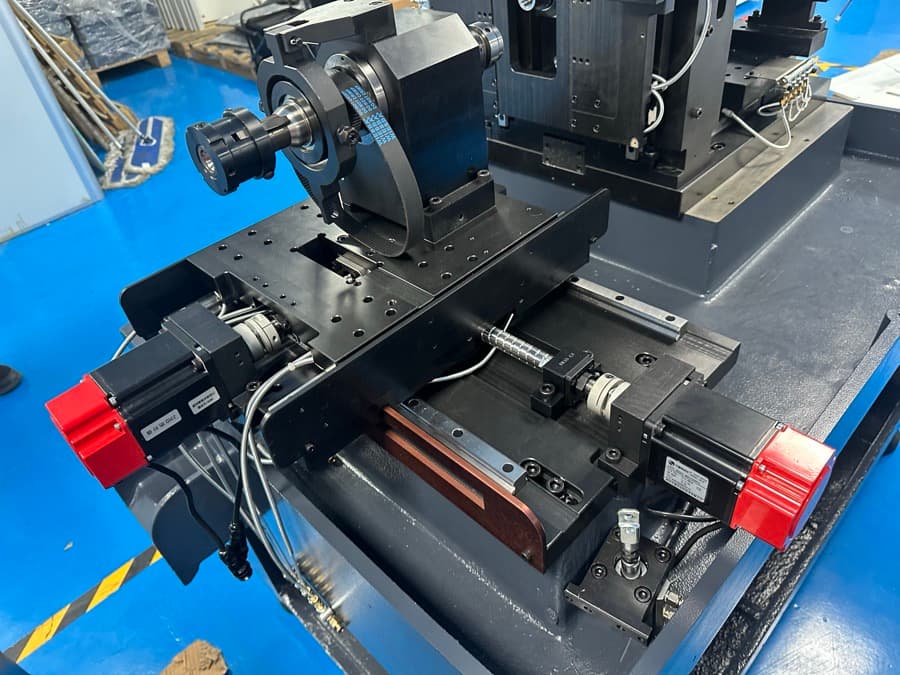

Mechanical assembly
Machine structures and precision assemblies prepared and inspected on site.

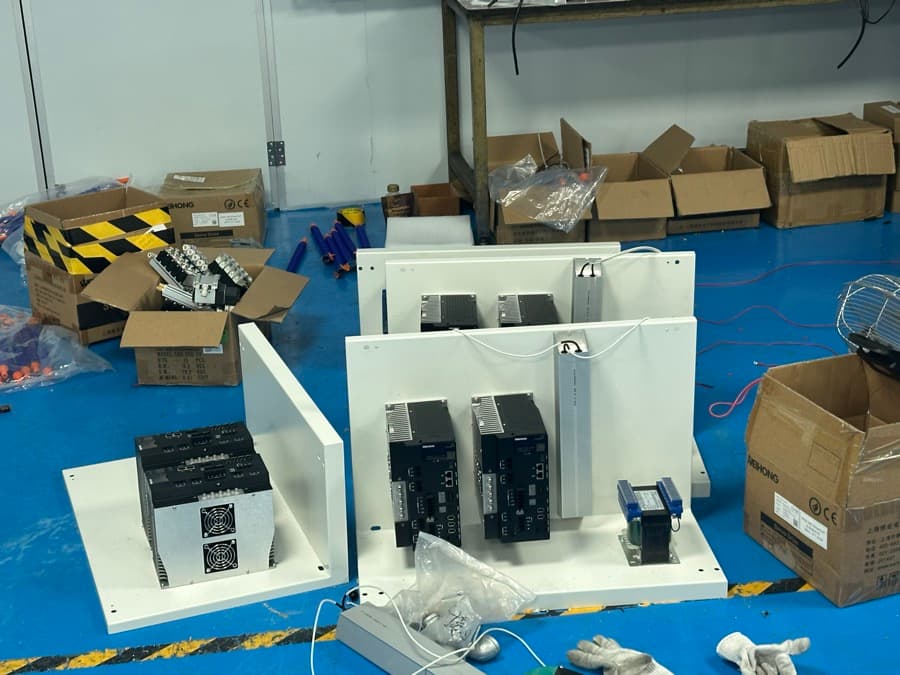

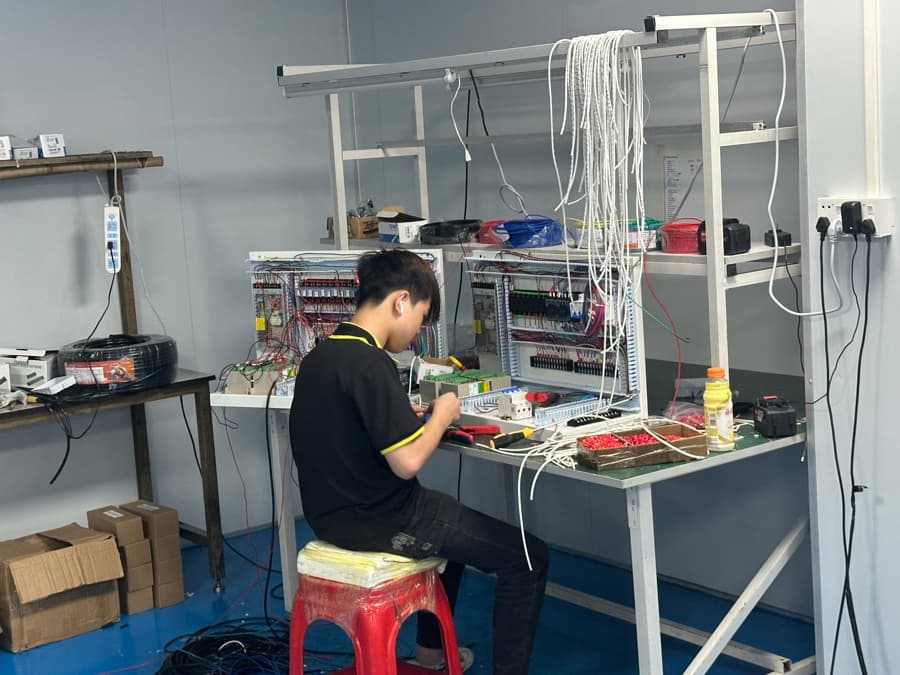

Electrical integration
Control-system wiring and electrical assembly are completed in the factory.

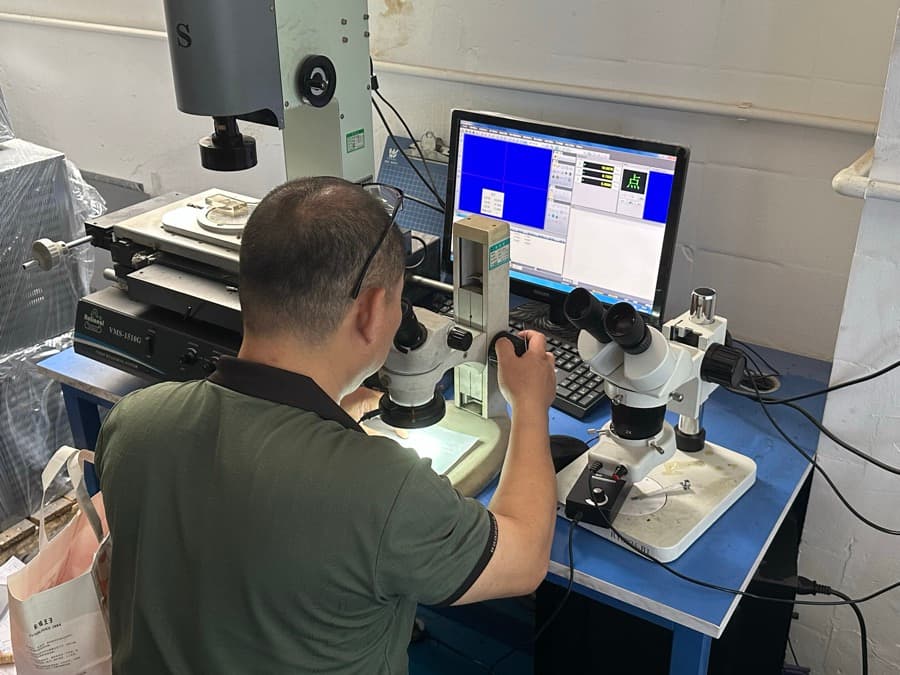

Microscope inspection
Machined parts are reviewed under magnification with measurement equipment.

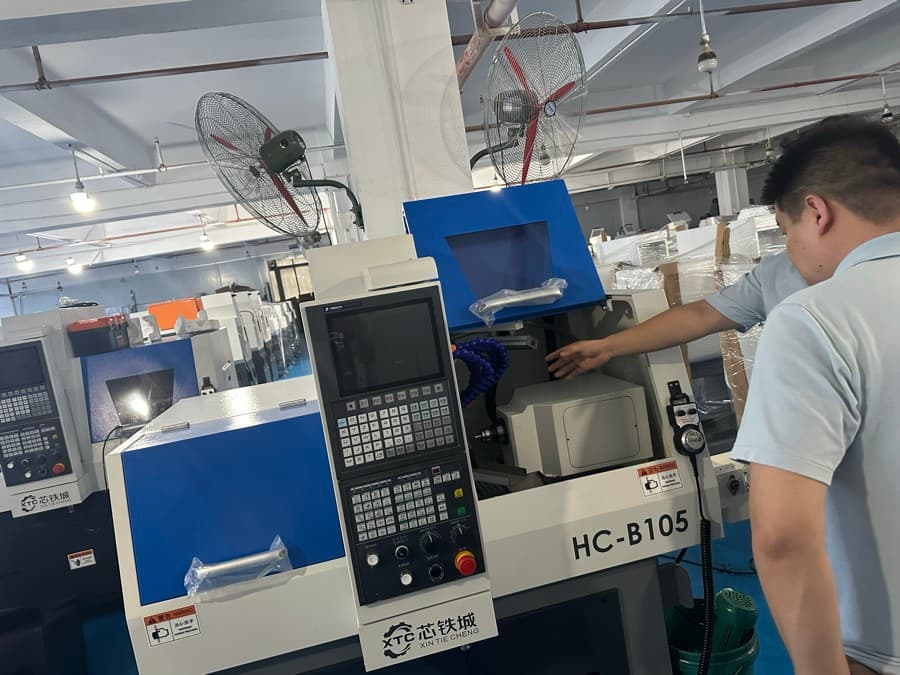

On-site machine review
Real-machine operation and process conditions are reviewed at the equipment.

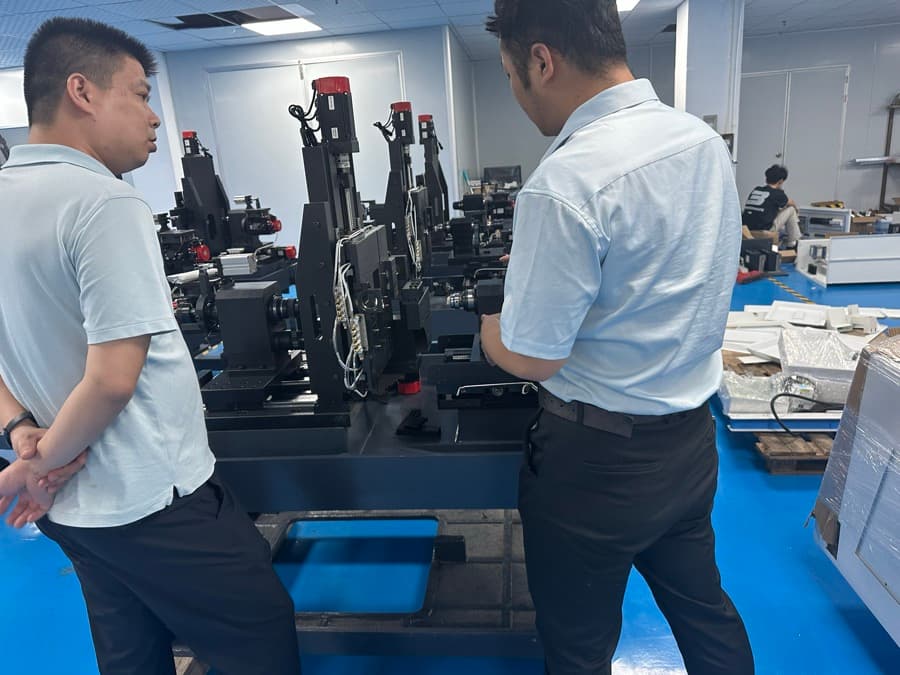

Application discussion
Technical requirements are discussed around the actual machine structure.

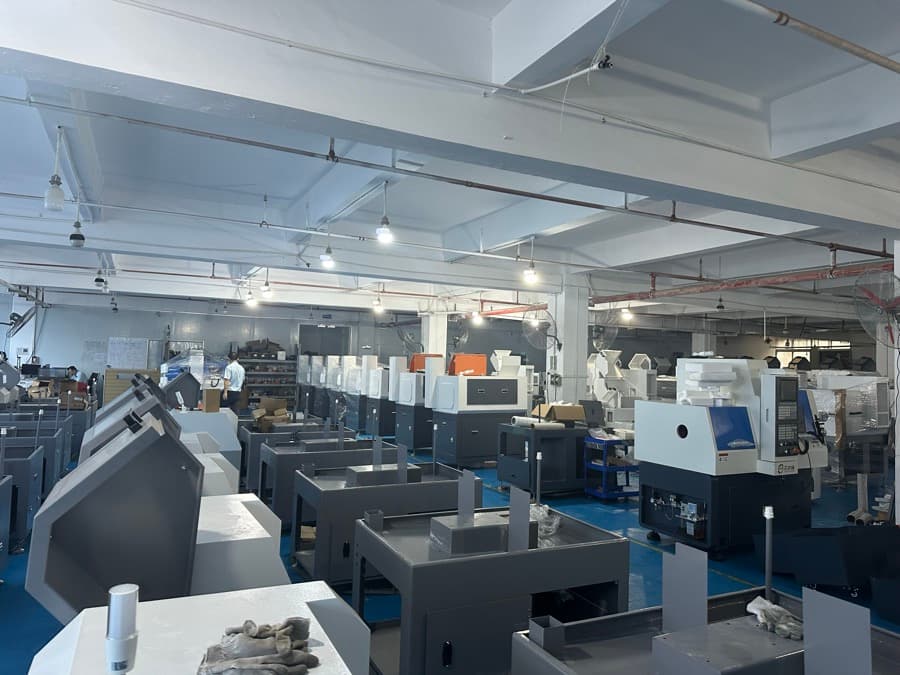

Production floor
Multiple machines are assembled and prepared in the real factory environment.

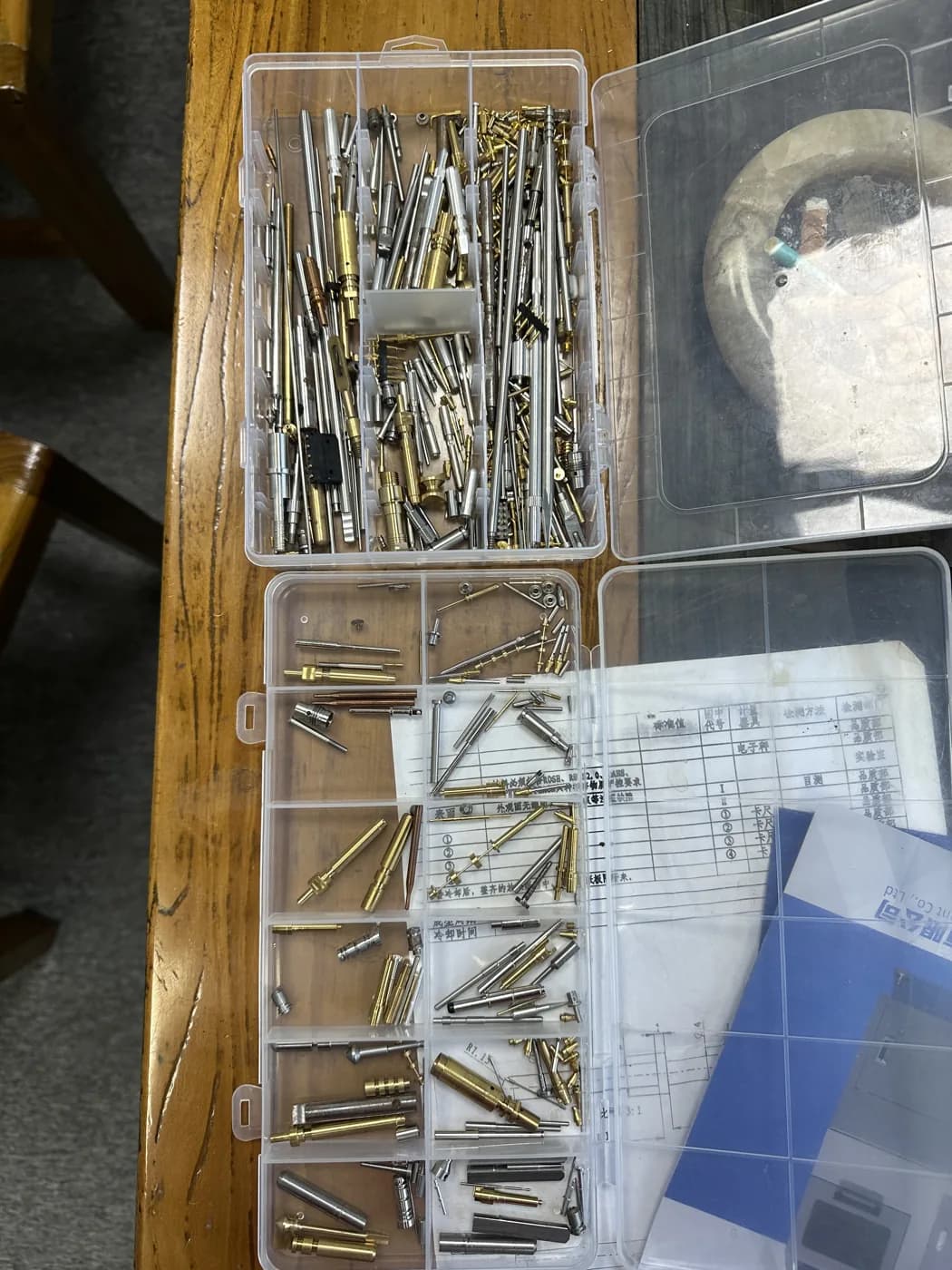

Machined samples
Actual sample parts support discussion of geometry, process and inspection needs.
Inside the machine
Engineering credibility comes from the details
Slides, spindle assemblies, tool positions, electrical systems and in-process inspection are shown as real production evidence. Buyers can review the machine structure and application conditions before discussing a model.
2014Company established10,000 m²Catalogue factory area18Catalogue patent references
Technology preview · commissioning for end of 2026

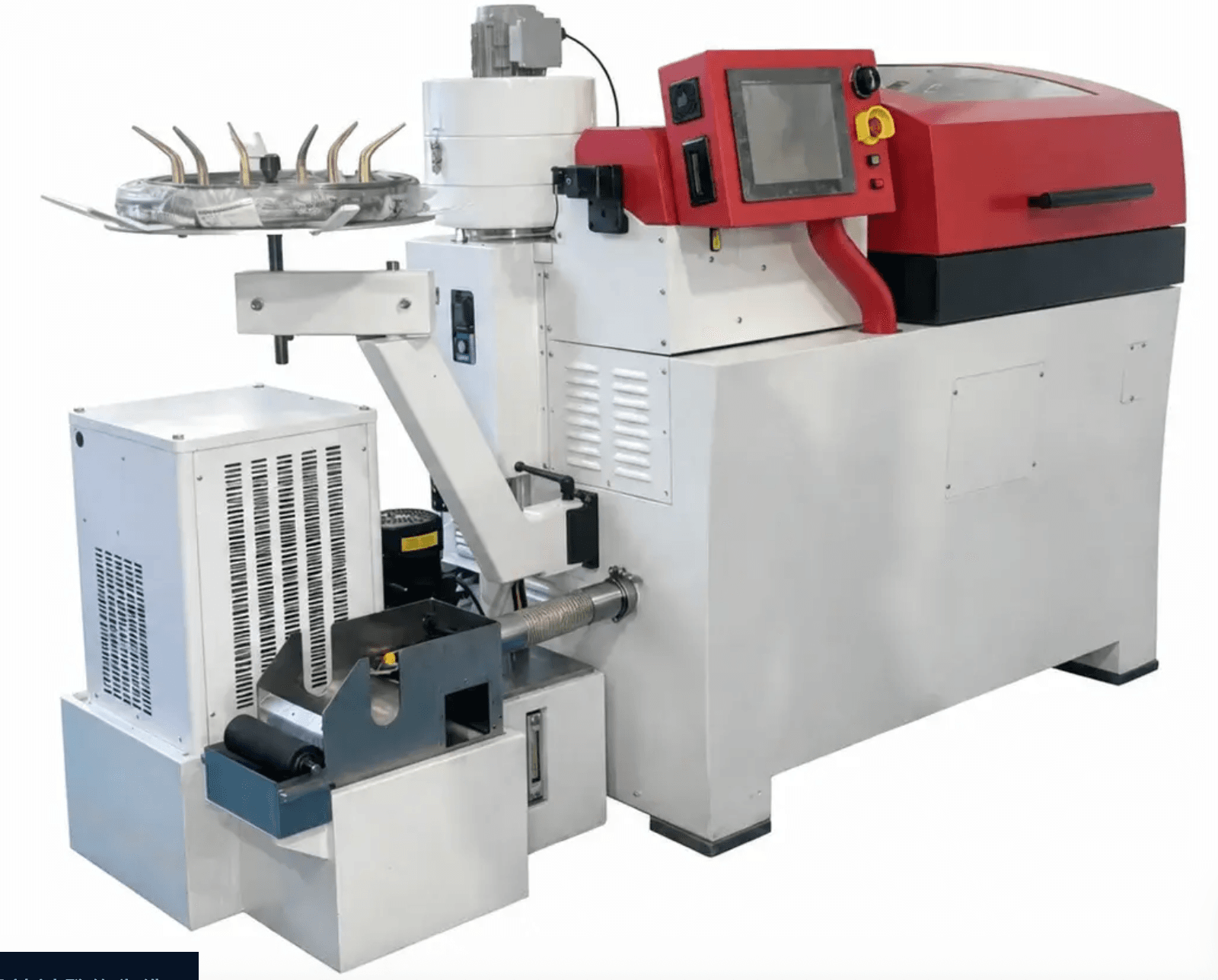

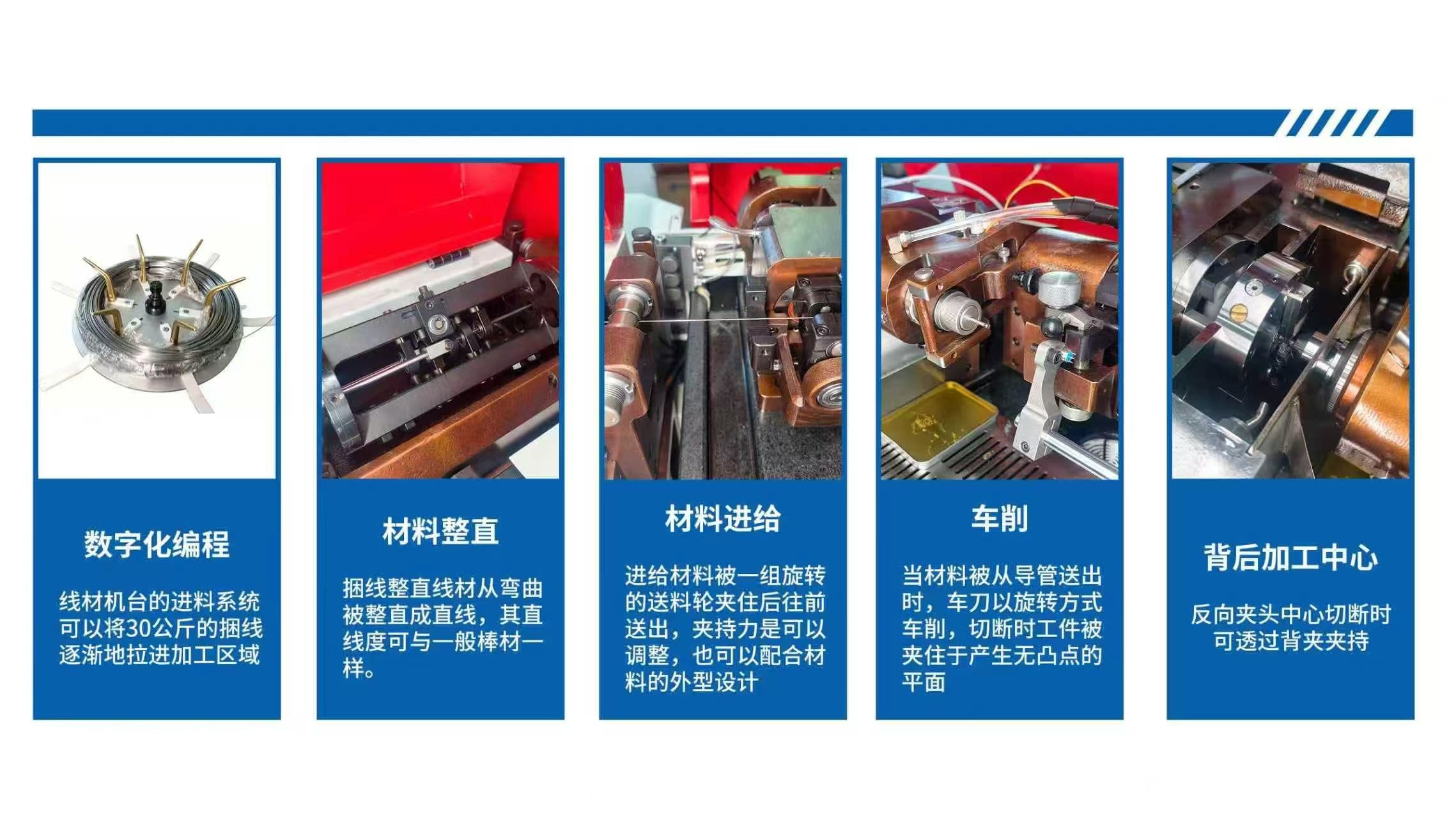

A new wire-fed Swiss-type CNC platform is undergoing commissioning

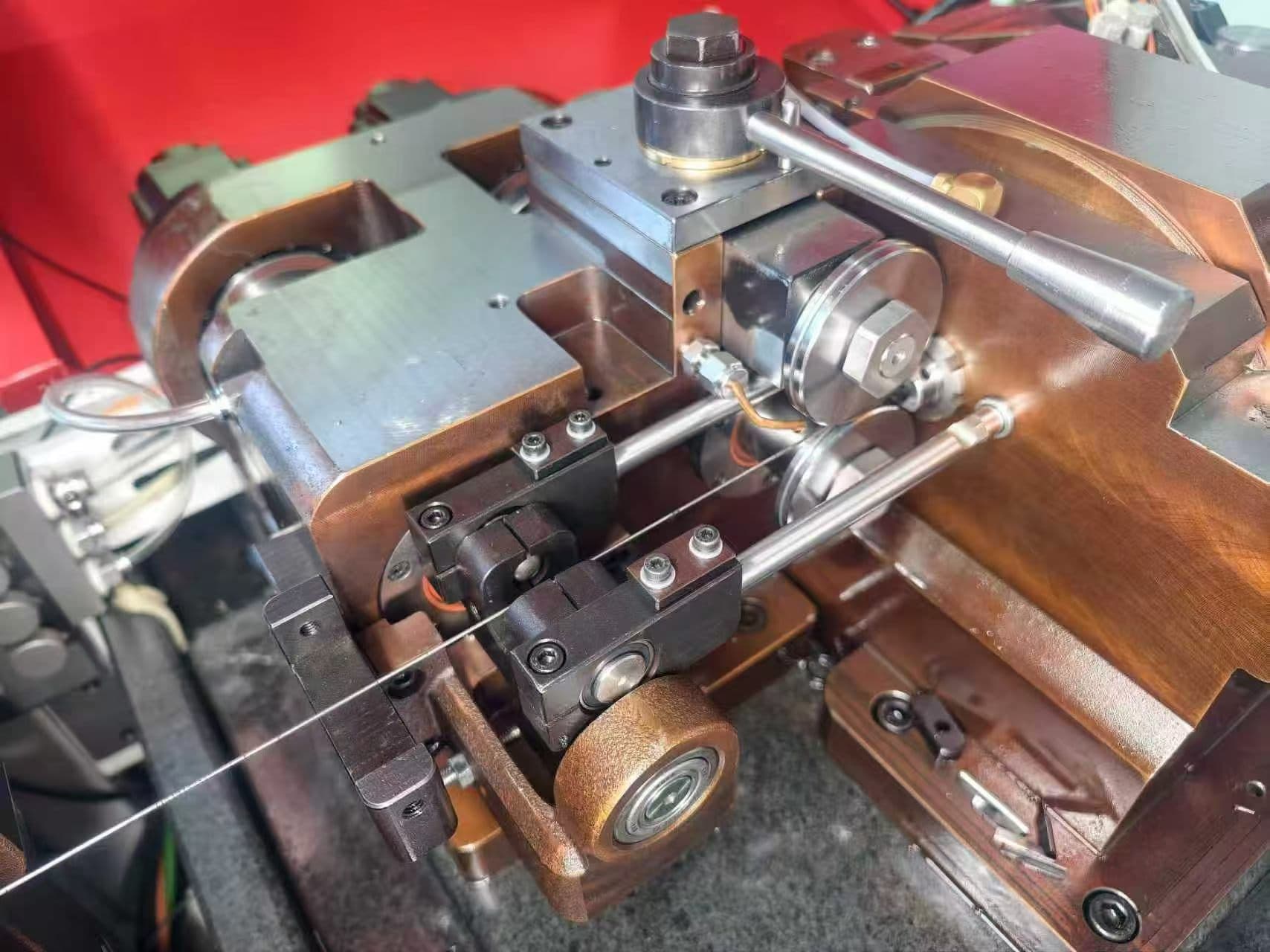

Machine development has been completed. The current stage focuses on commissioning, process tuning and validation of coil input, material straightening, controlled feeding, turning, cutoff and back-working.
This is a pre-release machine undergoing final testing. The formal model name, specifications, options and release schedule will be confirmed after commissioning and factory validation.
Register interest

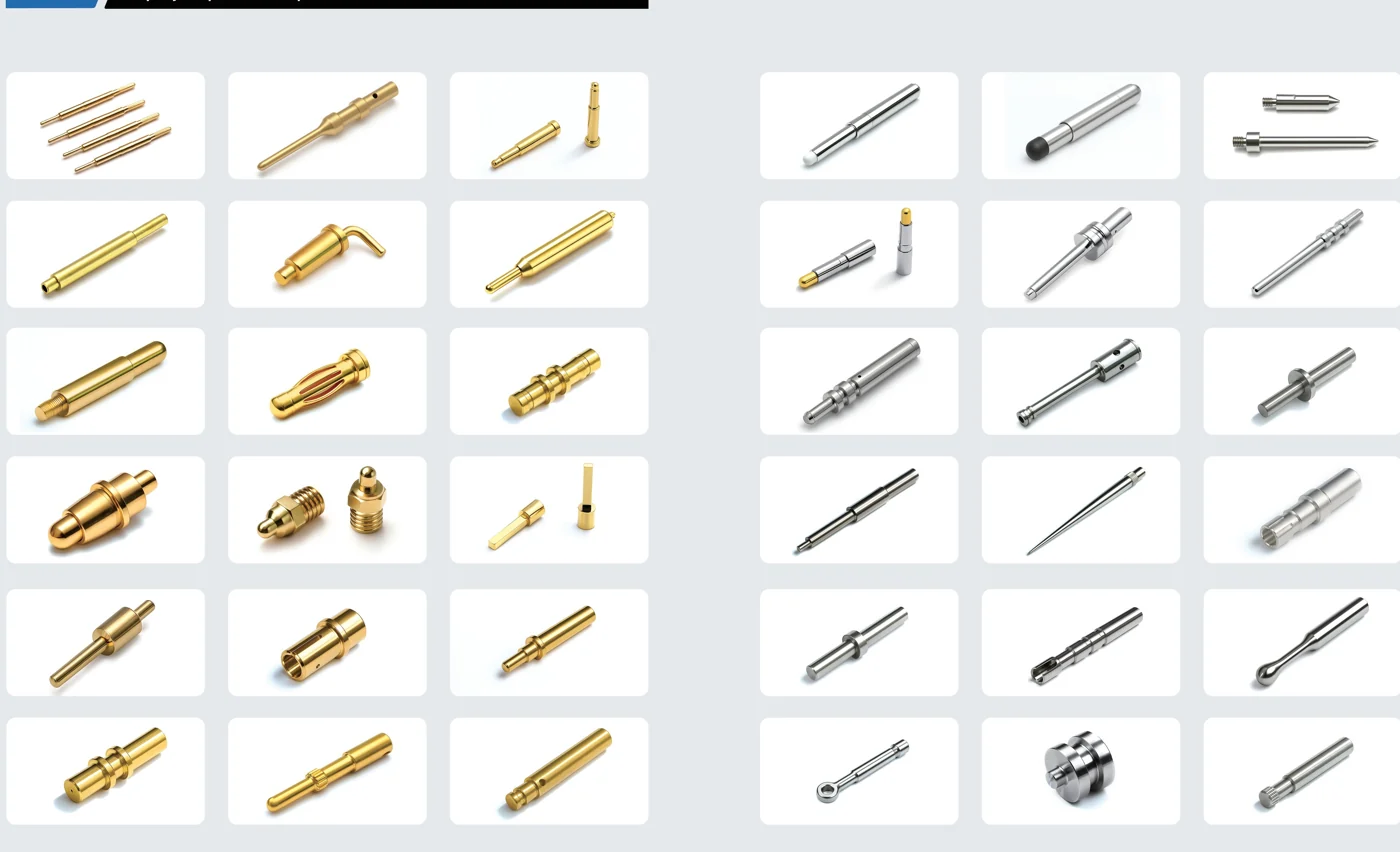

Typical machined parts
Applications supported by supplied samples
Small Precision Turned Parts
Precision Pins
Connector Components
Small Shaft-Type Parts
Catalogue Sample Parts
Factory Sample Parts
Free 2026 buyer resource
Request the Swiss-Type CNC Lathe Buyer's Guide
A practical guide for factories considering small precision part production and cam-machine upgrades.
- How to prepare part information
- Five current machine platforms
- Cam-machine upgrade checks
- Questions to ask before a model recommendation
Start with the actual part
Request information or a model review
Tell us what you produce. We will send the requested material and ask for a drawing or sample photo when a model review is needed.
Automatic information deliveryLead review and follow-upNo price shown before application review
